Description
xHighlights
6 Spline & Round Ends: Our brush hog shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Tractor end: 1 3/8" x 6-spline; implement end: 1 3/8" x round end.
Adjustable Length: Compressed Length: 30" / 750 mm; Extended Overall Length: 39" / 980 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque.
Sturdy & Reliable: This shaft is a well-forged series 4 driveling shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield.
Convenient & Secure: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
Wide Application: It is widely used on mowers, rotary tillers, brush cutters, hush hug, tractors, and many more. Control the speed and power of your machine effectively.
Specification
Brand:VEVOR
Details

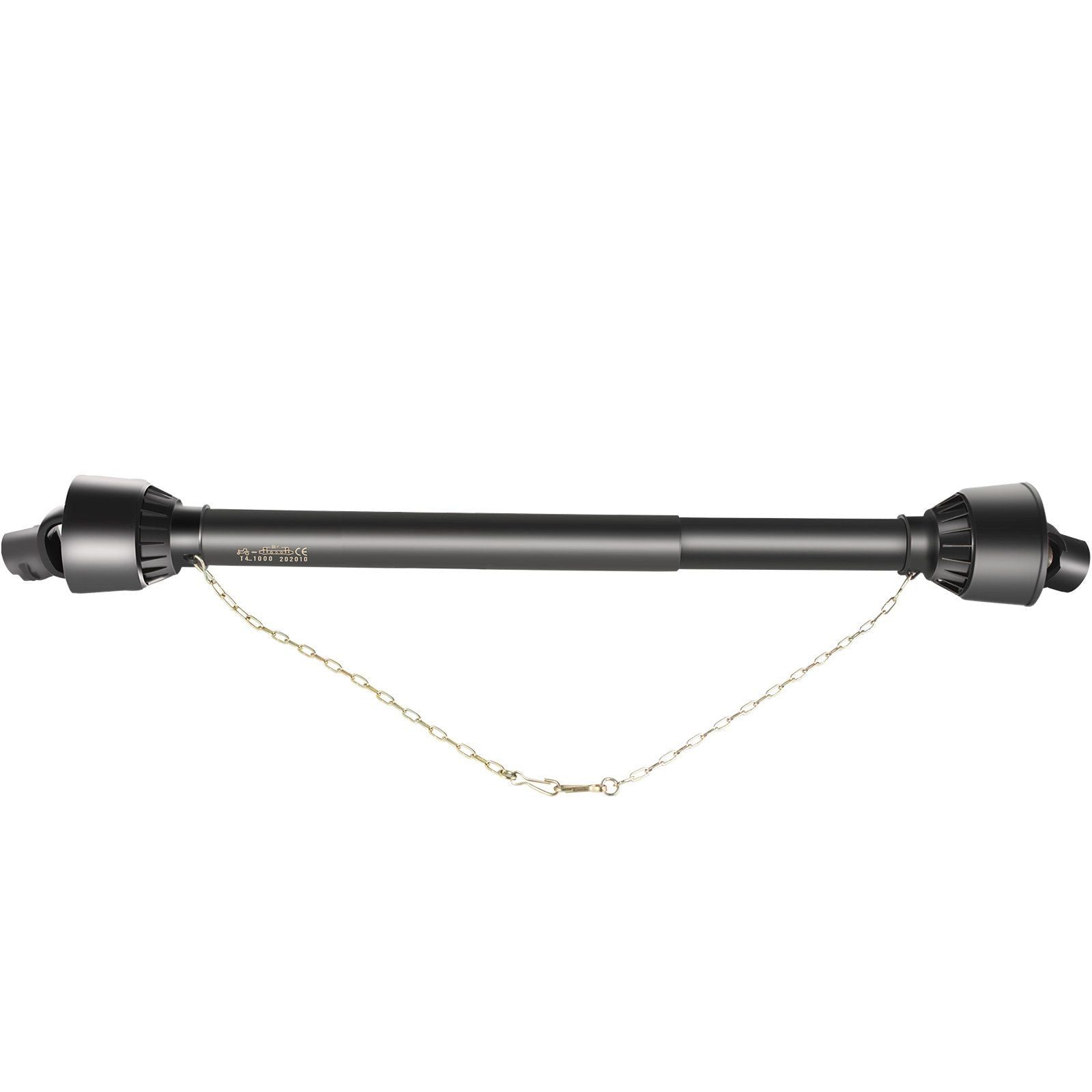

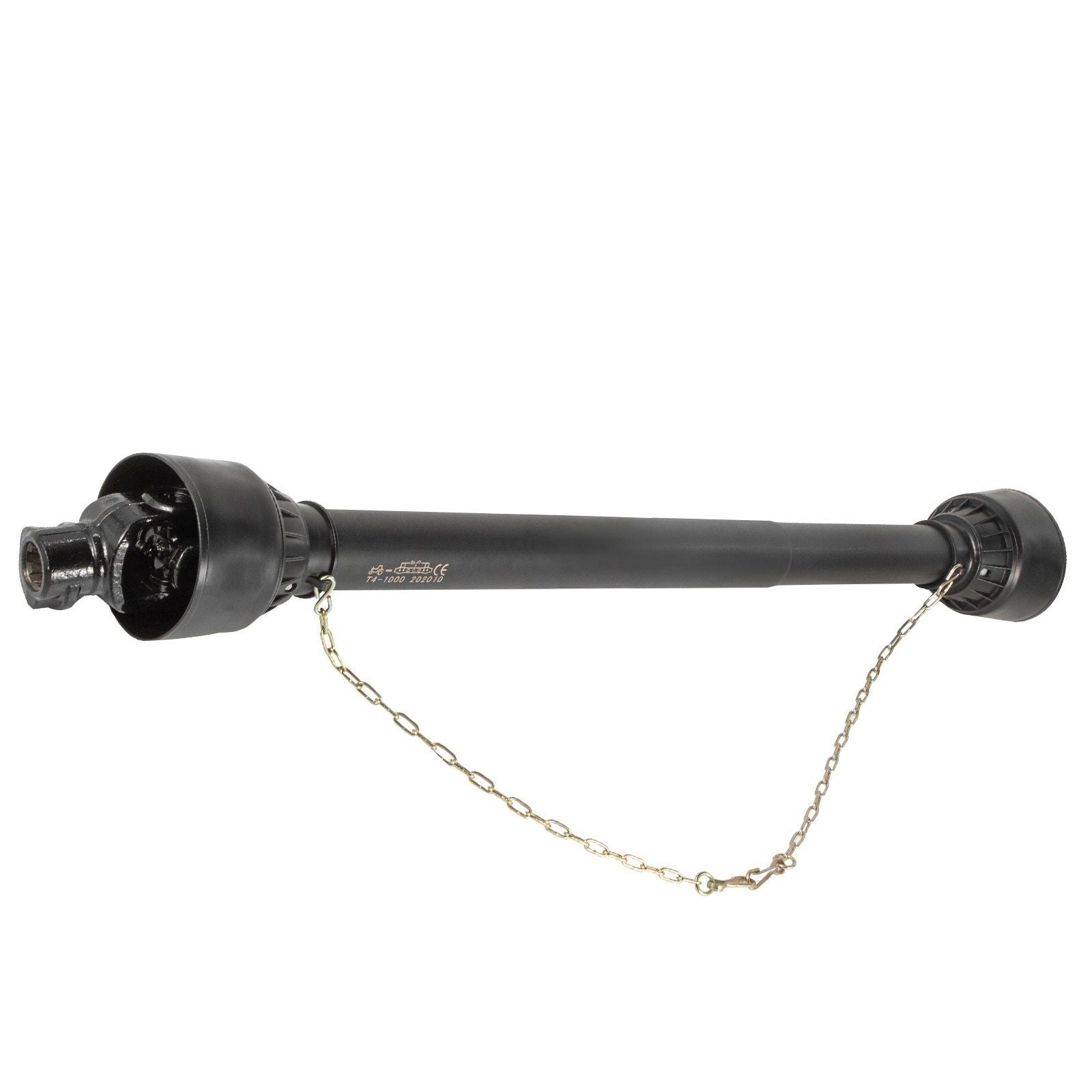

PTO Drive Shaft for Tractors
30"-39" ＆ 1-3/8" Ends ＆ Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly.
-
Sturdy & Reliable
-
6 Spline ＆ Round Ends
-
Adjustable Length
-
Easy Assembly
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
PTO Drive Shaft for Tractors
30"-39" ＆ 1-3/8" Ends ＆ Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly.
- Sturdy & Reliable
- 6 Spline ＆ Round Ends
- Adjustable Length
- Easy Assembly

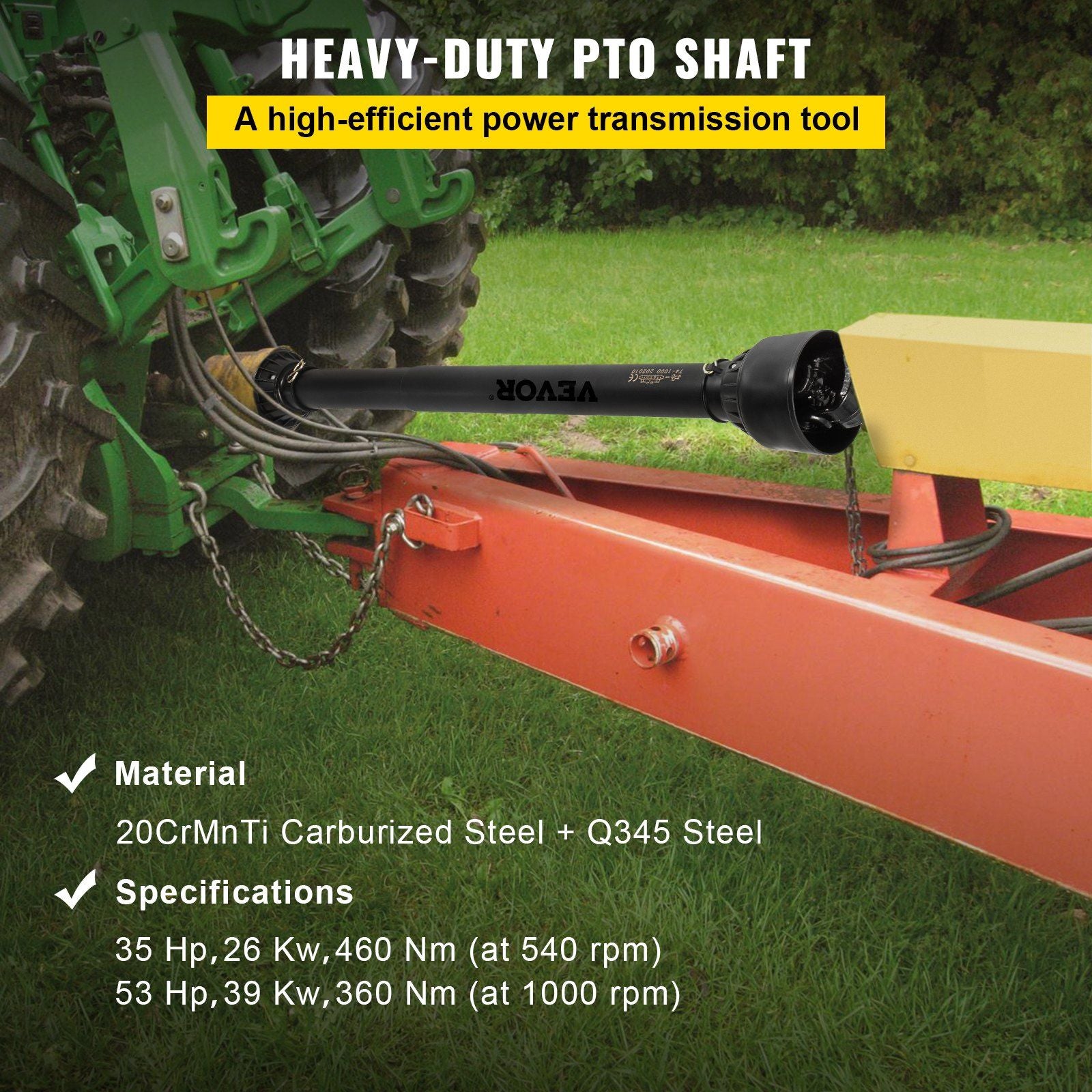

Durable PTO Shaft
This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.

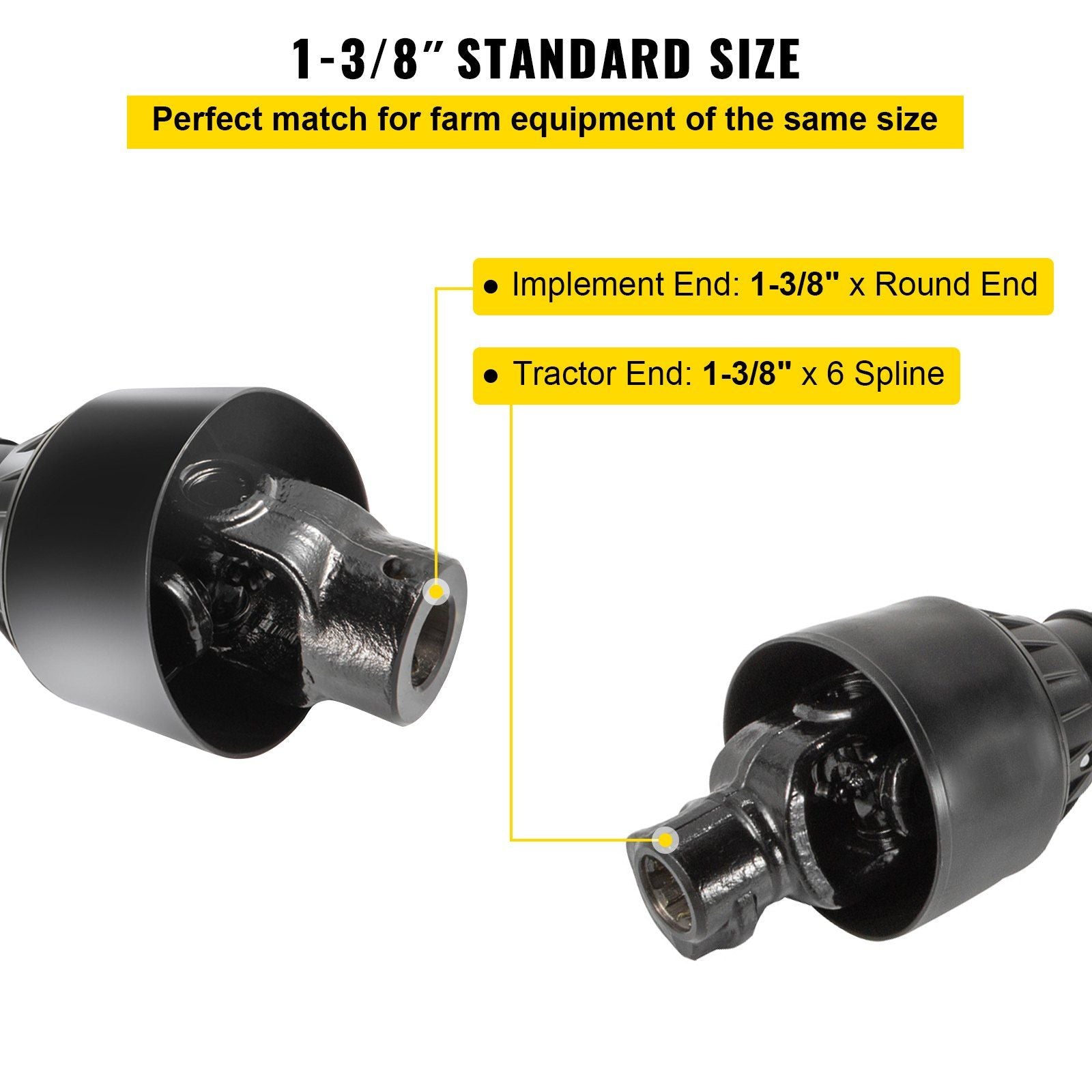

Perfect Match
With 30"-39" extendable length and featuring 1-3/8" 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.

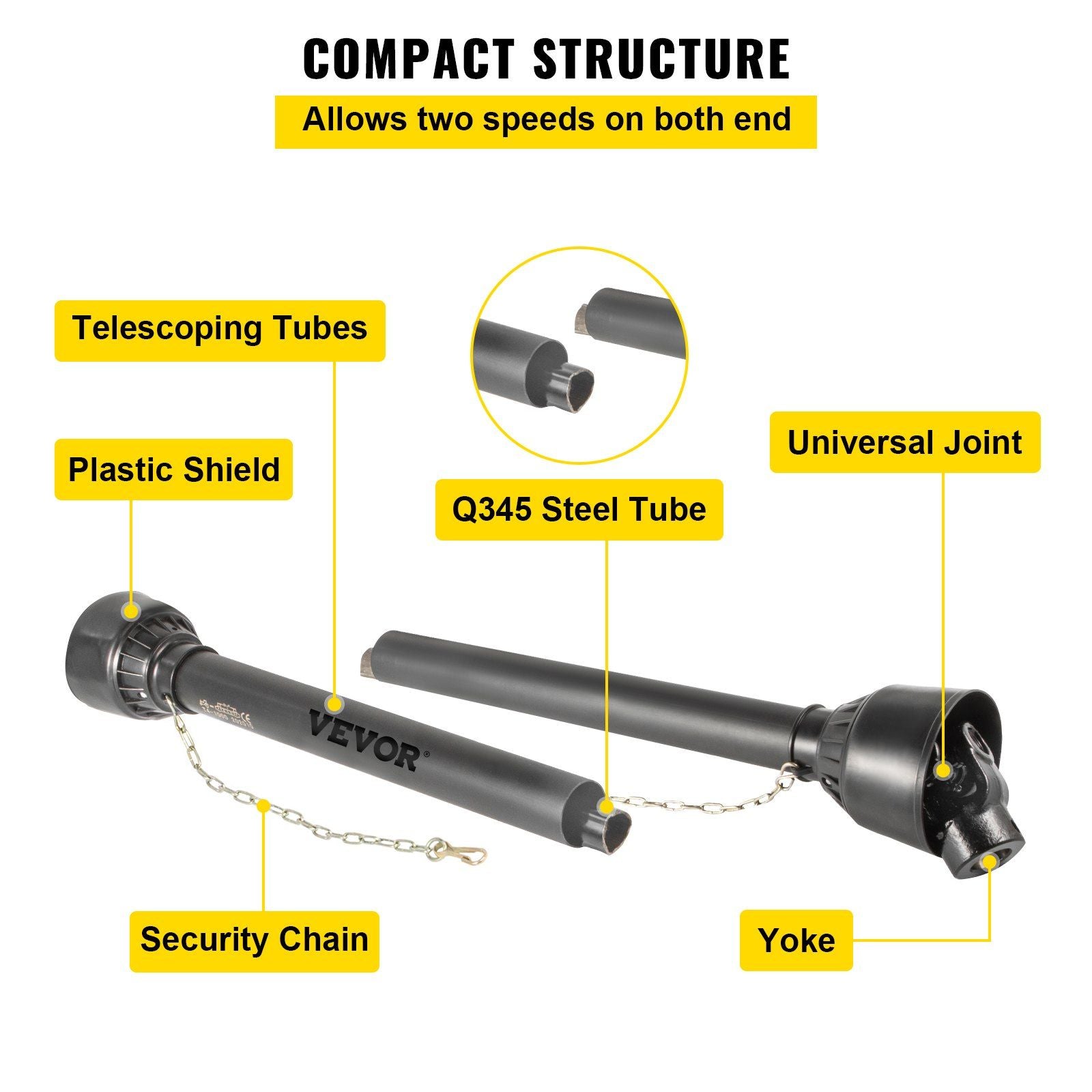

Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.

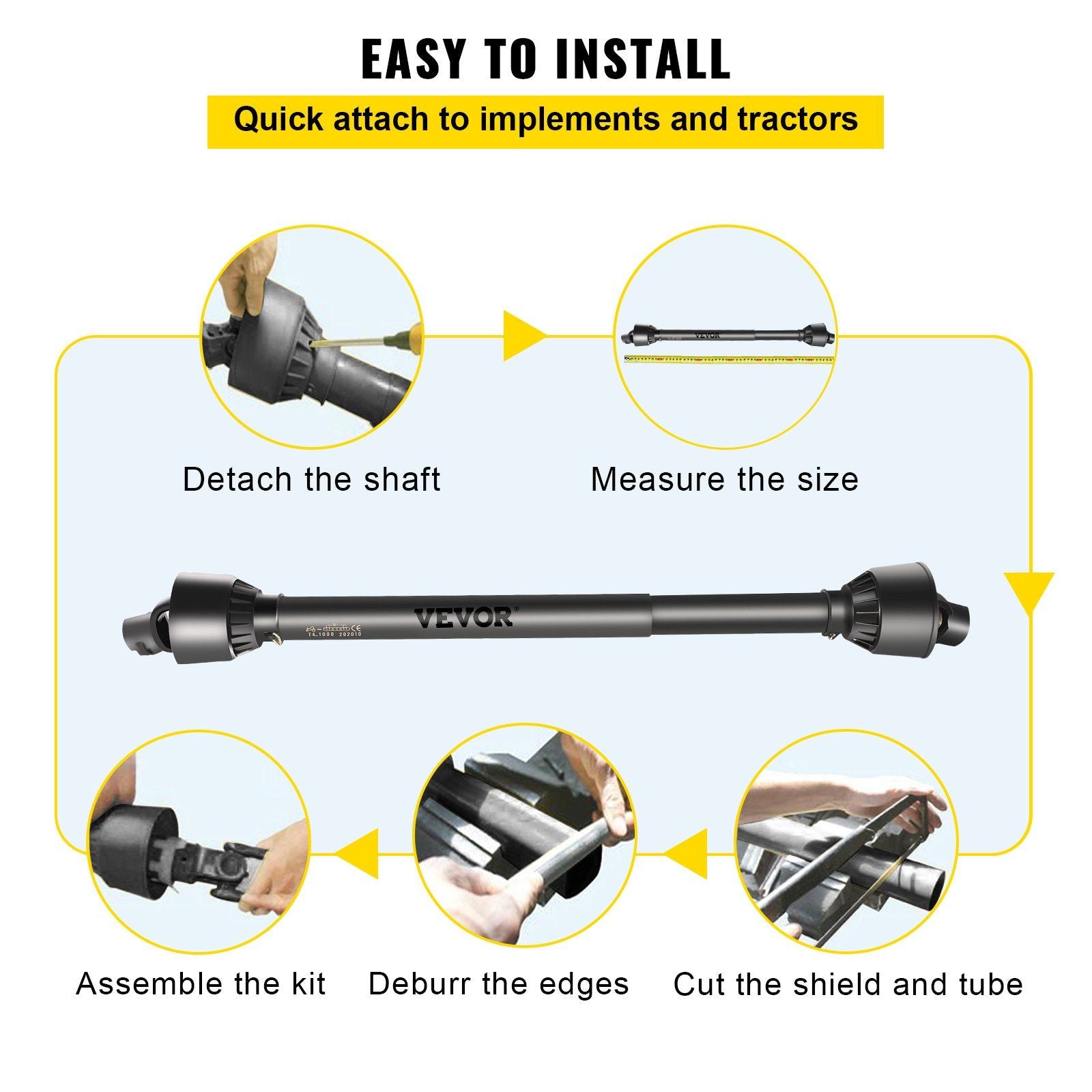

Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
Package Content
- 1 x PTO Shaft
- 1 x Locking Pin
- 1 x User Manual
Specifications
- Model: T4-BⅢP*750mm*4.05.05B*4.05.A35
- Part Type: PTO Drive Shaft
- Series: 4
- Certificate: CE Certification
- Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
- Tractor End: 1-3/8" x 6 Spline
- Implement End: 1-3/8" x Round End
- Compressed Length: 30" / 750 mm
- Extended Overall Length: 39" / 980 mm
- At 540RPM: 35hp, 26Kw, 460Nm
