Description
xHighlights
Sturdy and Durable: This PTO shaft is a well-forged series5 driveline shaft with CE certification. It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.
6 Spline Ends: Tractor end: 1-3/8" x 6 Spline; implement end: 1-3/8" x 6 Spline. Our brush hog PTO shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.
Adjustable Length: Compressed Length: 43"; Extended Overall Length: 57". The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 47 Hp, 35 Kw, and 620 Nm torque at 540 rpm, while at 1000 rpm features 77 Hp, 55 Kw, and 500 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.
Easy Assembly & Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for direct replacement. The slip clutch works as an extra security line for the PTO shaft to prevent further damage moving up the line. The security chain and plastic shield eliminate potential dangers in the transmission process.
Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, rotary tillers, tractors, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.
Specification
Brand:VEVOR
Details
PTO Drive Shaft
1-3/8" 6-spline ends & 43"-57" & Series 5
This splined PTO shaft is built from sturdy steel and features 6-spline tractor and implement ends. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
-
Sturdy and Durable
-
6 Spline Ends
-

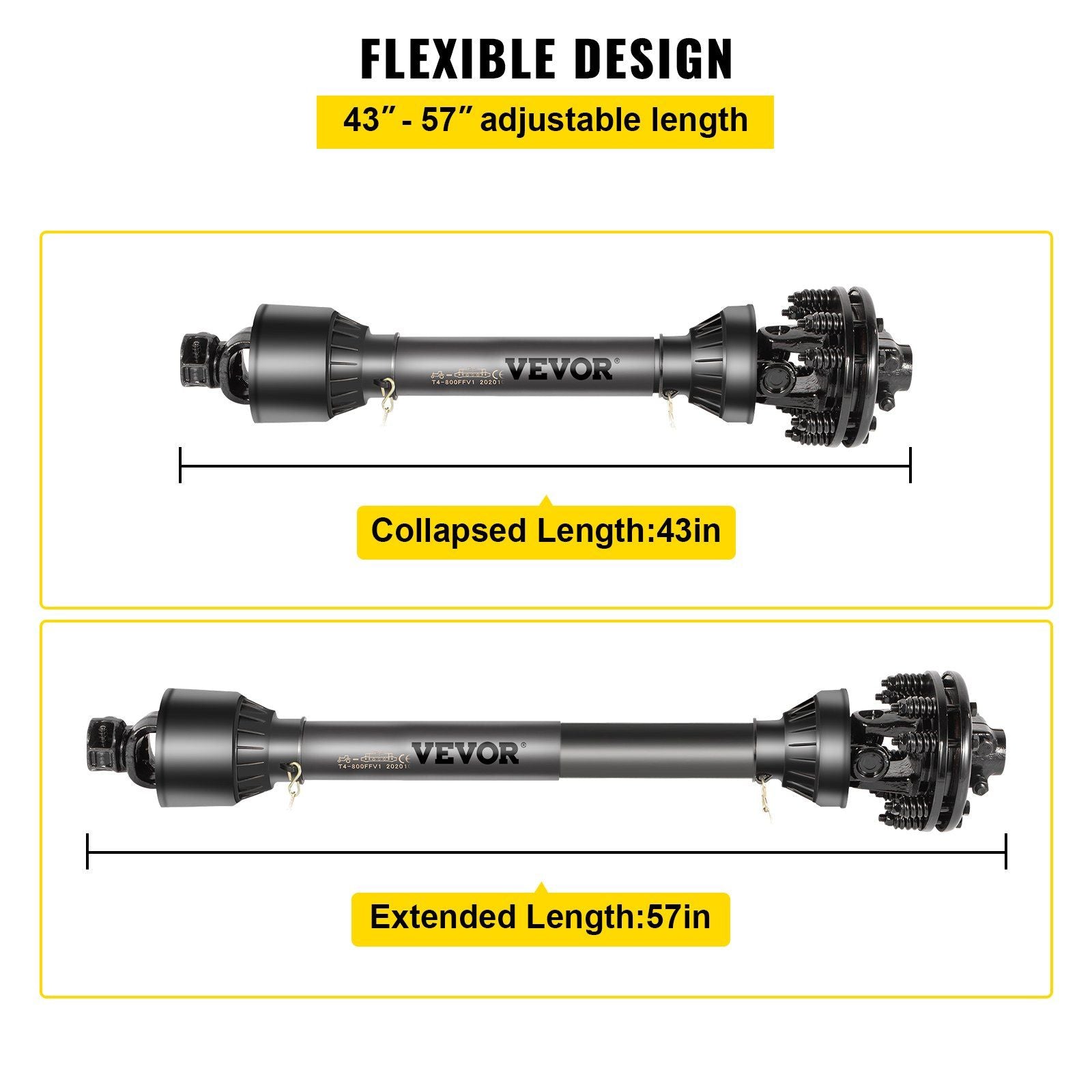

Adjustable Length
-
Easy Assembly & Safer Use
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
PTO Drive Shaft
1-3/8" 6-spline ends & 43"-57" & Series 5
This splined PTO shaft is built from sturdy steel and features 6-spline tractor and implement ends. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
- Sturdy and Durable
- 6 Spline Ends
- Adjustable Length
- Easy Assembly & Safer Use

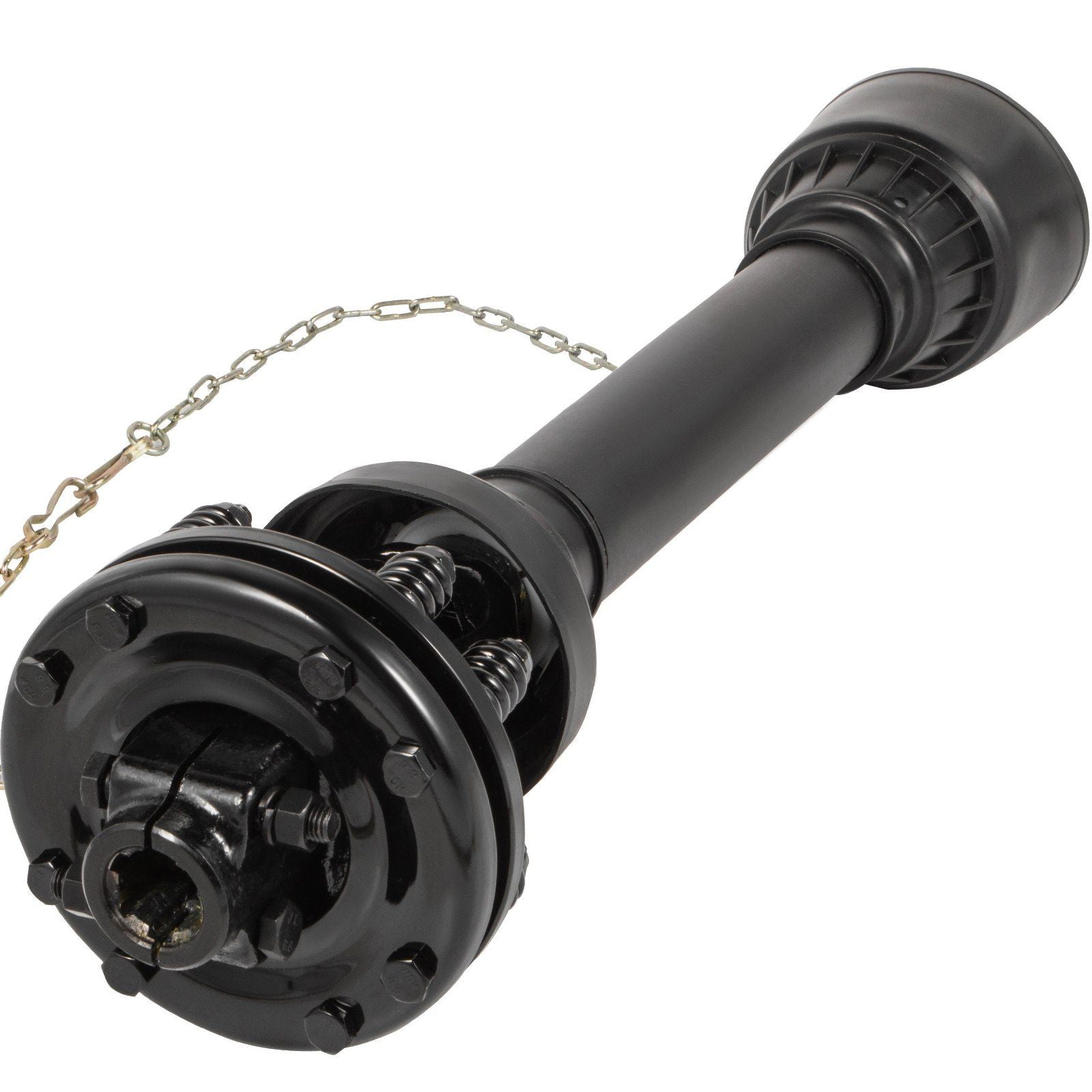

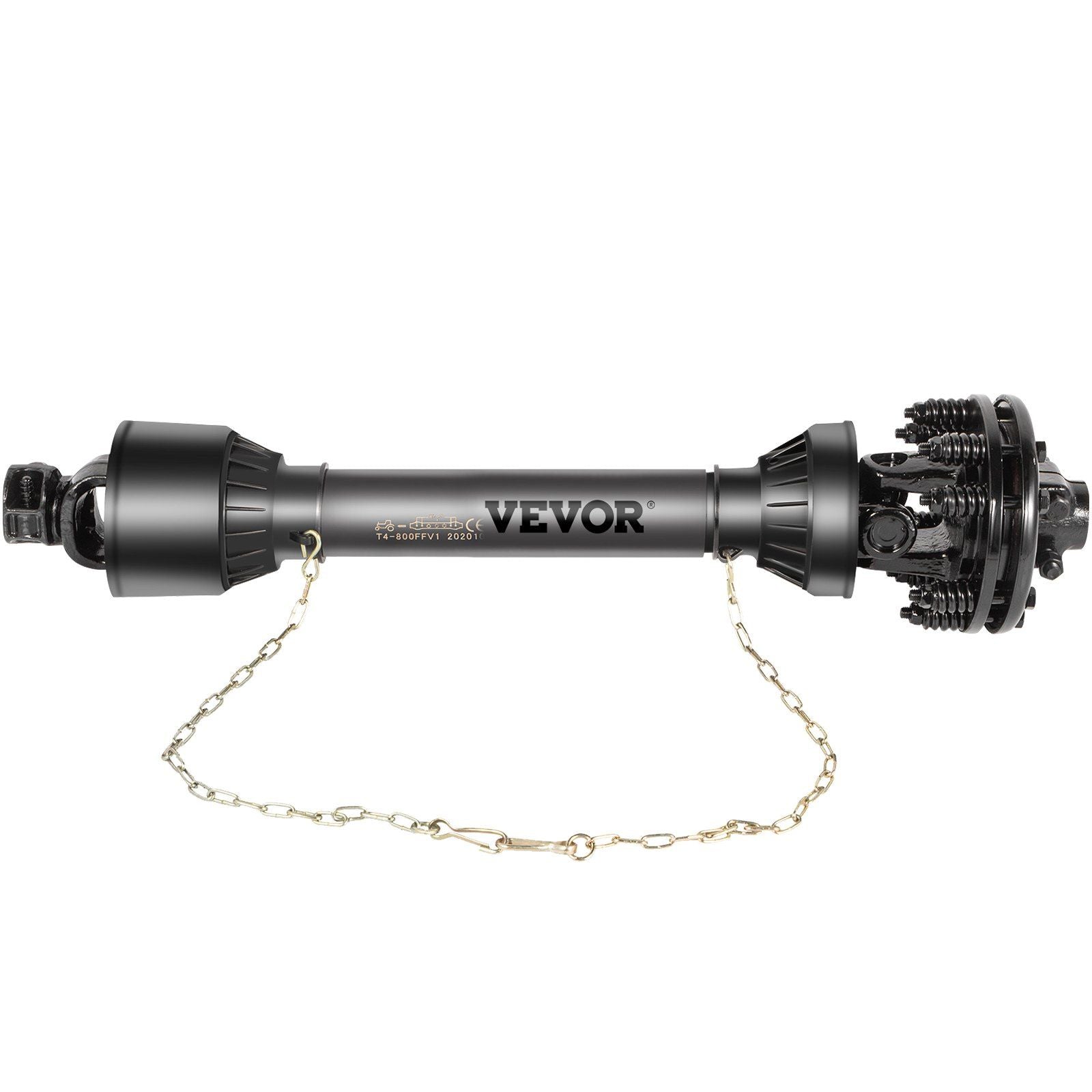

Durable PTO Shaft
This T5 tiller PTO shaft is built from high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.

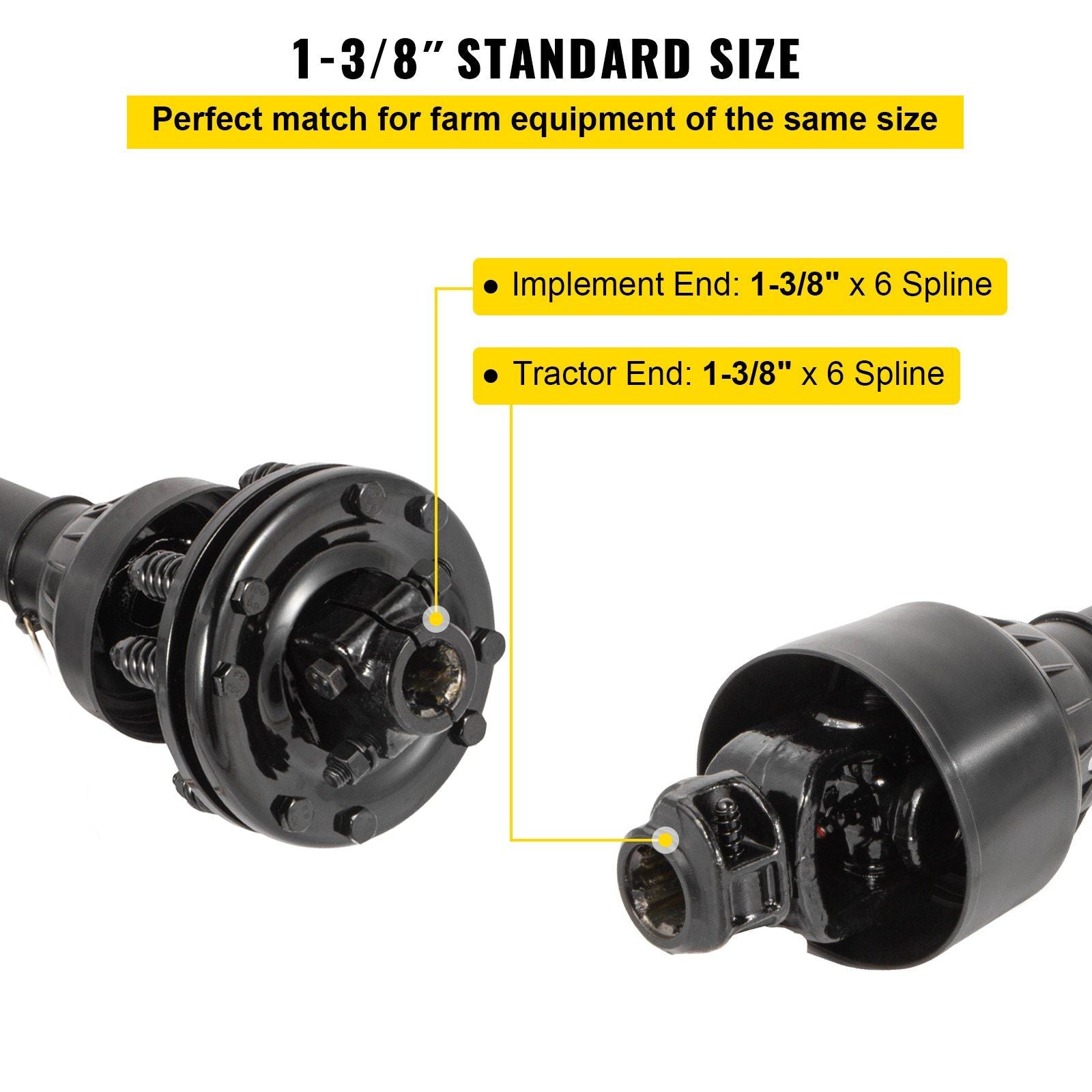

Perfect Match
With 43"-57" extendable length and featuring 1-3/8" 6-spline on both tractor and implement ends (include a slip clutch), the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.

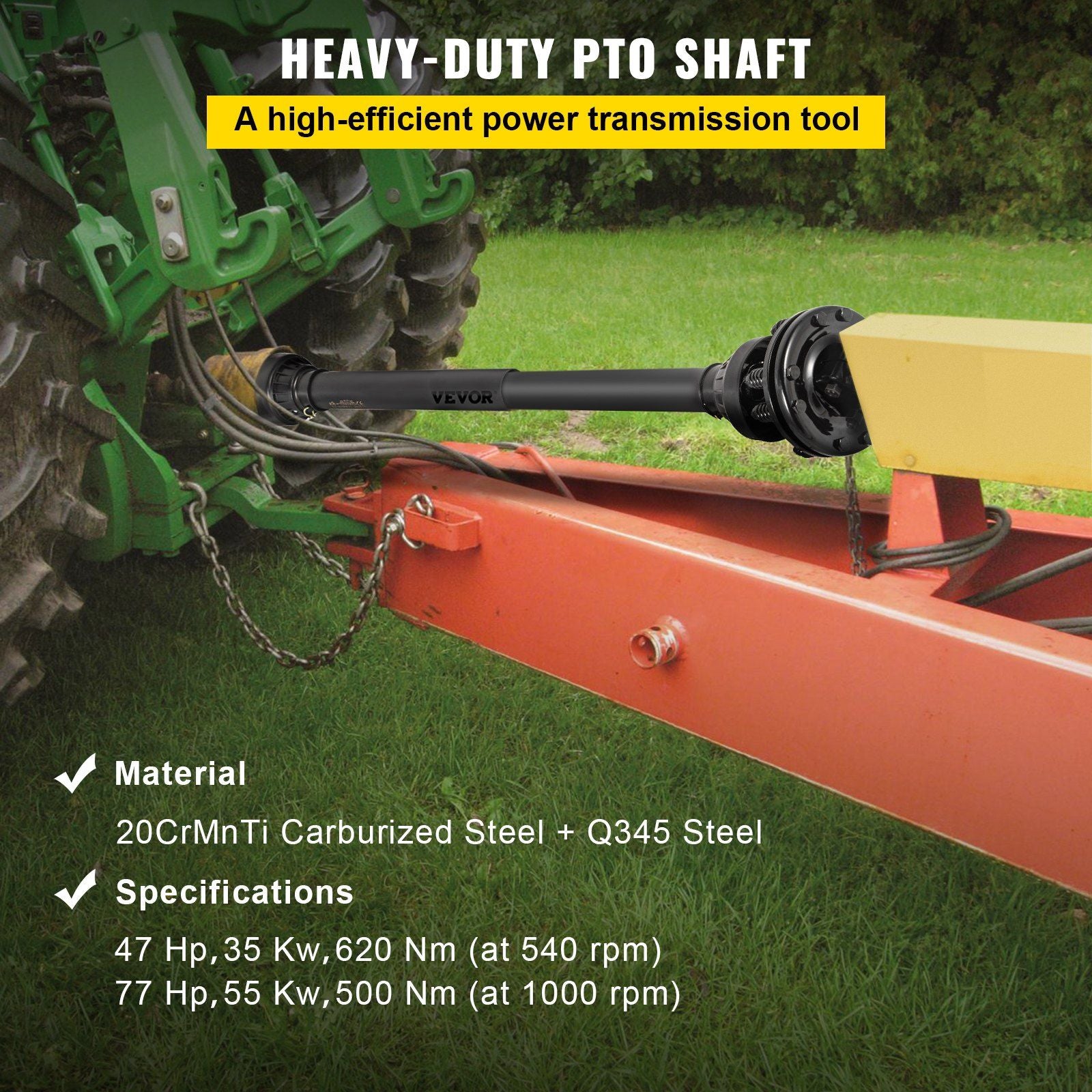

Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 47hp, 35kw, and 620 nm torque; 75hp, 55kw, and torque 500 nm at 1000 rpm.

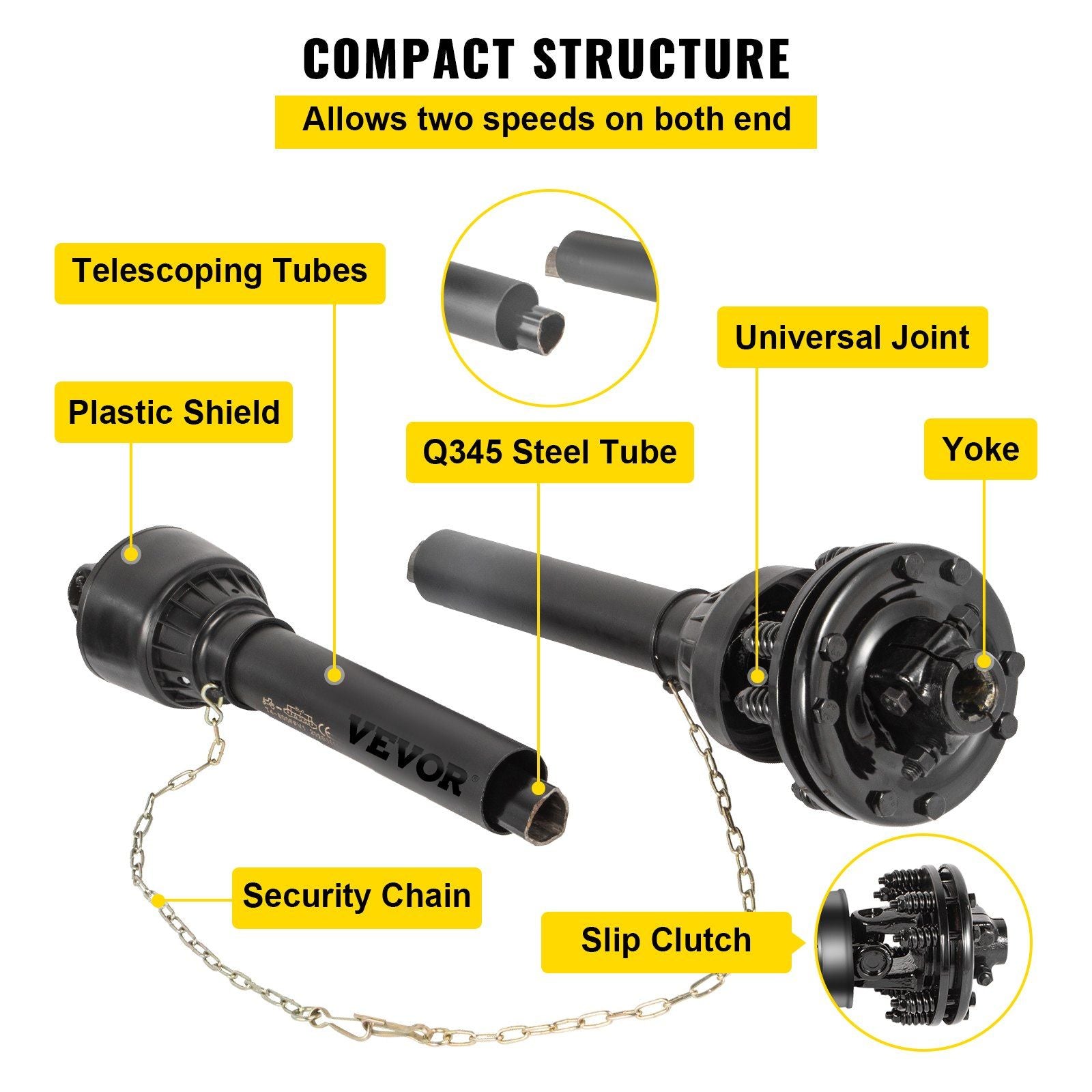

Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a slip clutch, a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.

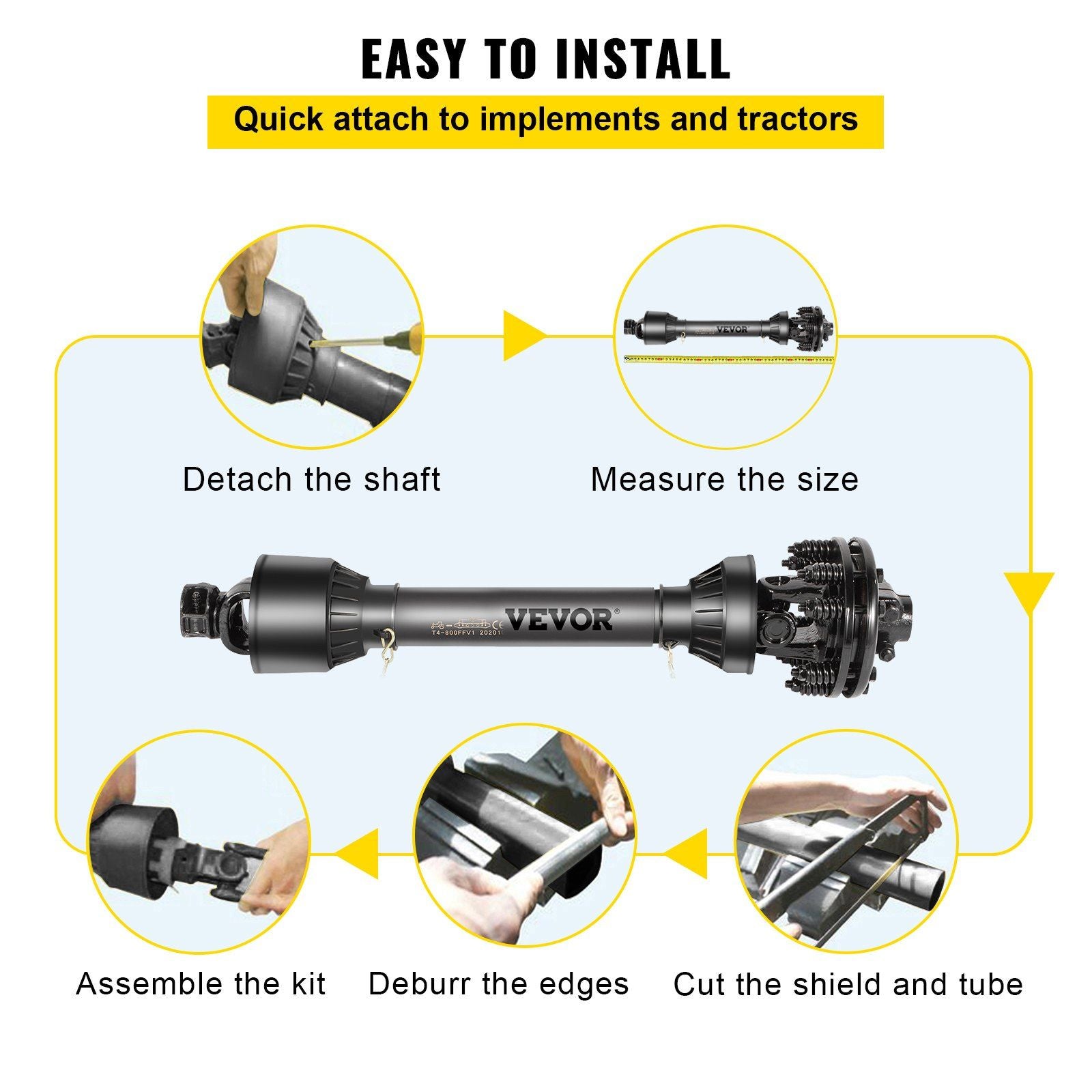

Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to a proper length, please read the manual carefully and remember to deburr the edges after cutting.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
Package Content
- 1 x PTO Shaft
- 1 x User Manual
Specifications
- Model: T5-BⅢP*1100mm*5.05.05B*5FFV1
- Part Type: PTO Drive Shaft
- Series: 5
- Certificate: CE Certification
- Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
- Tractor End: 1-3/8" x 6 Spline
- Implement End: 1-3/8" x 6 Spline
- Compressed Length: 43" / 1100 mm
- Extended Overall Length: 57" / 1450 mm
- At 540RPM: 47hp, 35Kw, 620Nm
- At 1000RPM: 75hp, 55Kw, 500Nm
- Color: Black
